10W*3/12W*3/15W*3/18W*3/20W*3/25W*3 COB LED Grille Down Light |
1, Excellent appearance and thanks for the 6063 Aviation Aluminum with Unique disspation structure |
to guaratee the Light's long lifespan |
2, Adopting high quality CREE COB light source, CRI≥80Ra |
3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
5, Energy saving: 80% more than traditional lamp |
6, Very harmonious Lighting Effect |
7, No mercury, no radiation, no ultraviolet ray |
8, Operating Temperature:-10℃~+40℃ |
9, Dimmable and Non dimmable optional. TRIAC Dimmable/C-Bus/CLIPSAL/HPM compatible. It can meet different |
places needs |
|
Item No. |
MD-GLC-10W-31 |
MD-GLC-12W-31 |
MD-GLC-15W-31 |
MD-GLC-18W-31 |
MD-GLC-20W-31 |
MD-GLC-25W-31 |
Power |
10W*3 |
12W*3 |
15W*3 |
18W*3 |
20W*3 |
25W*3 |
Lumens |
≥2550lm |
≥2700lm |
≥3825lm |
≥3825lm |
≥5100lm |
≥6000lm |
Beam Angle |
24°/38°/60° |
24°/38°/60° |
15°/24°/40° |
15°/24°/40° |
15°/24°/40° |
15°/24°/40° |
Size |
L300*W115*H95mm |
L300*W115*H95mm |
L365*W135*H120mm |
L365*W135*H120mm |
L365*W135*H130mm |
L365*W135*H130mm |
Cut Out |
L280*W95mm |
L280*W95mm |
L345*W115mm |
L345*W115mm |
L345*W115mm |
L345*W115mm |
Warranty |
4years(10W*3) |
3years(12W*3) |
4years(15W*3) |
3years(18W*3) |
4years(20W*3) |
3years(25W*3) |
Lifespan |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
≥50,000hours |
≥35,000hours |
CRI |
≥80Ra |
Input Voltage |
220-240VAC/100-240VAC |
Frequency |
50/60Hz |
Color Temperature |
2700K/3000K/4000K/5000K |
Material |
6063 Aluminum |
Certificate |
CE,RoHS,SAA |
LED Source |
Original CREE COB LED
|
|

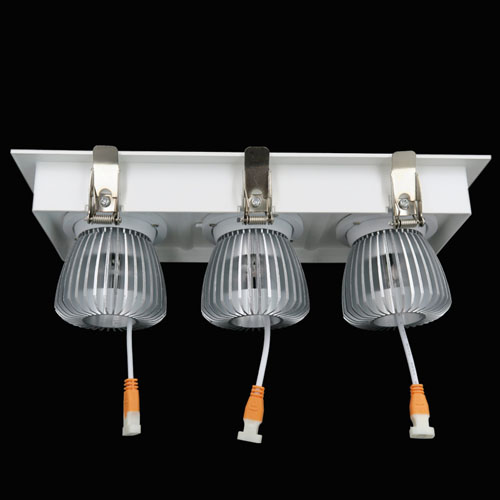

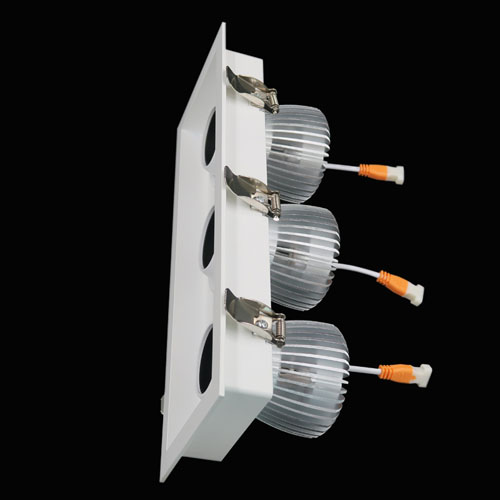

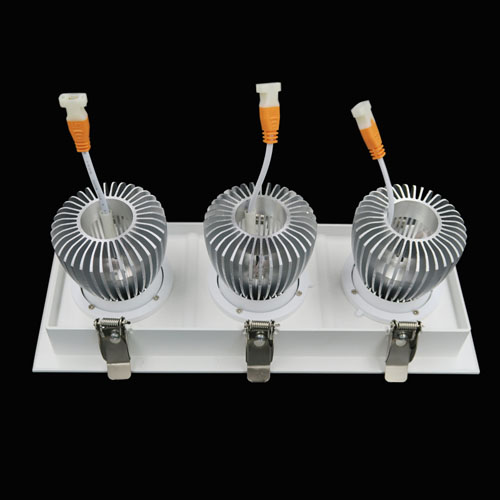

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the downlight's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
Application |
Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
