7W/12W/15W/20W COB LED Grille Down Light |
1, Excellent appearance and thanks for the Aluminum with Unique disspation structure |
to guaratee the Light's long lifespan |
2, Adopting high quality CREE COB light source, CRI≥80Ra |
3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
5, Energy saving: 80% more than traditional lamp |
6, Very harmonious Lighting Effect |
7, No mercury, no radiation, no ultraviolet ray |
8, Operating Temperature:-10℃~+40℃ |
9, Dimmable and Non dimmable optional. TRIAC Dimmable/C-Bus/CLIPSAL/HPM compatible. It can meet different |
places needs |
|
Item No. |
MD-GLC-07W-14 |
MD-GLC-12W-14 |
MD-GLC-15W-14 |
MD-GLC-20W-14 |
Power |
7W |
12W |
15W |
20W |
Lumens |
≥665lm |
≥1140lm |
≥1425lm |
≥1900lm |
Beam Angle |
15°/24°/36° |
15°/24°/36° |
15°/24°/36° |
15°/24°/36° |
Size |
L88*W88*H70mm |
L88*W88*H85mm |
L88*W88*H102mm |
L115*W115*H87mm |
Cut Out |
L75*W75mm OR Φ75mm |
L75*W75mm OR Φ75mm |
L75*W75mm OR Φ75mm |
L95*W95mm OR Φ95mm |
Warranty |
3years |
3years |
3years |
3years |
Lifespan |
≥50,000hours |
≥50,000hours |
≥50,000hours |
≥50,000hours |
CRI |
≥80Ra OR ≥90Ra |
Input Voltage |
220-240VAC/100-240VAC |
Frequency |
50/60Hz |
Color Temperature |
2700K/3000K/4000K/5000K/6000K |
Material |
Aluminum |
Certificate |
CE,RoHS,SAA |
LED Source |
Original CREE COB LED
|
|

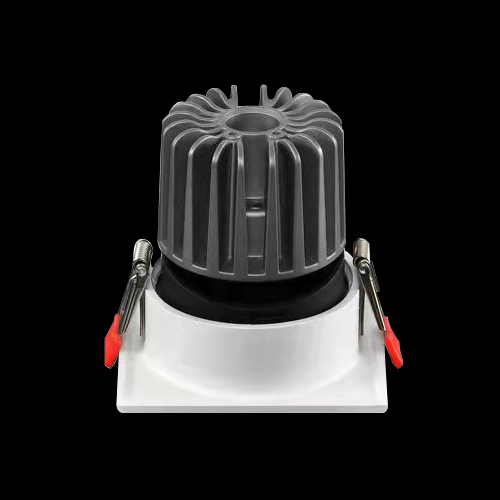

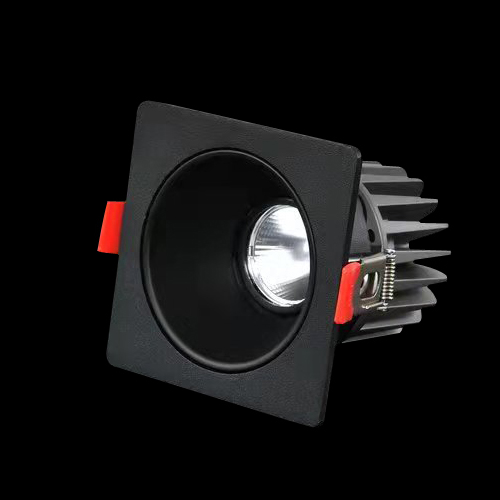

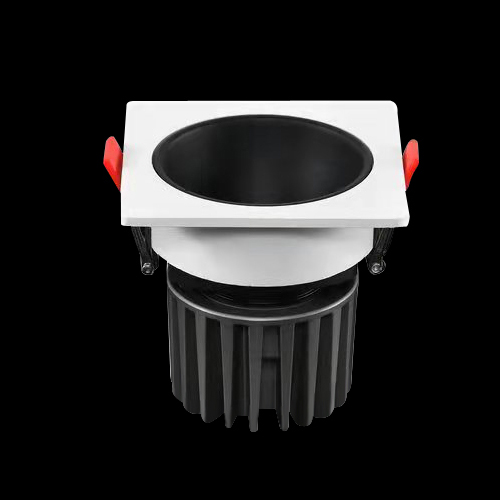

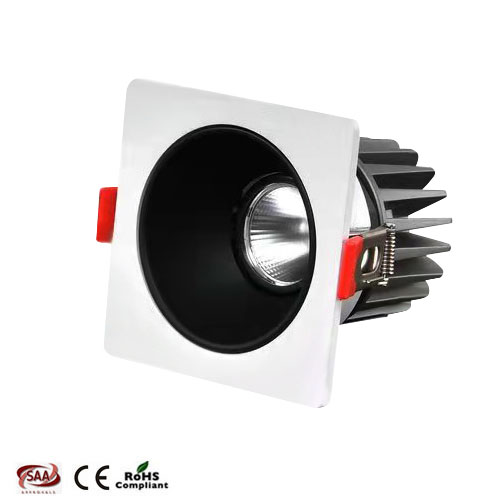

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the downlight's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
Application |
Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
