08W~50W COB LED Down Light |
1, Excellent appearance and thanks for the Die-casting Aluminum with Unique disspation structure |
| to guaratee the Light's long lifespan |
| 2, Adopting high quality CREE COB light source, CRI≥80Ra |
| 3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
| 4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
| 5, Energy saving: 80% more than traditional lamp |
| 6, Very harmonious Lighting Effect |
| 7, No mercury, no radiation, no ultraviolet ray |
| 8, Operating Temperature:-10℃~+40℃ |
| 9, Dimmable and Non dimmable optional. TRIAC Dimmable, C-Bus/CLIPSAL/HPM compatible. It can meet different |
| places needs |
|
| Item No. |
MD-DLC-08W-03 |
MD-DLC-10W-03
MD-DLC-12W-03
MD-DLC-15W-03 |
MD-DLC-20W-03 |
MD-DLC-25W-03
MD-DLC-30W-03 |
MD-DLC-35W-03
MD-DLC-40W-03 |
MD-DLC-45W-03
MD-DLC-50W-03 |
| Power |
8W |
10W/12W/15W |
20W |
25W/30W |
35W/40W |
45W/50W |
| Size |
Φ85*H56mm |
Φ106*H63mm |
Φ133*H70mm |
Φ163*H85mm |
Φ191*H97mm
|
Φ217*H107mm |
| Cut Out |
75mm |
95mm |
115mm |
145mm |
175mm |
200mm |
| Lumens |
≥700lm |
≥950lm
≥1140lm
≥1425lm |
≥1900lm |
≥2375lm
≥2850lm |
≥3325lm
≥3800lm |
≥4275lm
≥4750lm |
| Hosing Color |
White Finish / Black Finish |
| Input Voltage |
220-240V AC |
| Beam Angle |
15°/24°/36°/55° |
| Color Temperature |
2700K/3000K/4000K/5000K |
| CRI |
≥80Ra (≥90Ra Customized) |
| LED Source |
CREE OR EPISTAR |
| Material |
Aluminum |
| Lifespan |
≥50,000hours |
| Warranty |
3years |
| Certificate |
CE,RoHS,SAA |
|

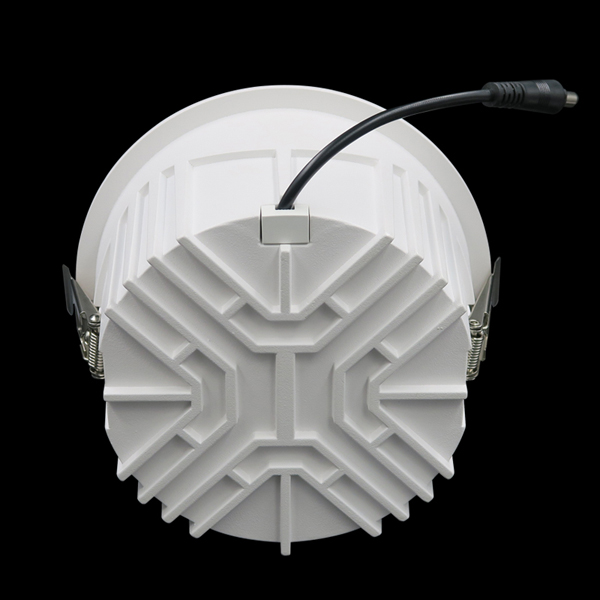

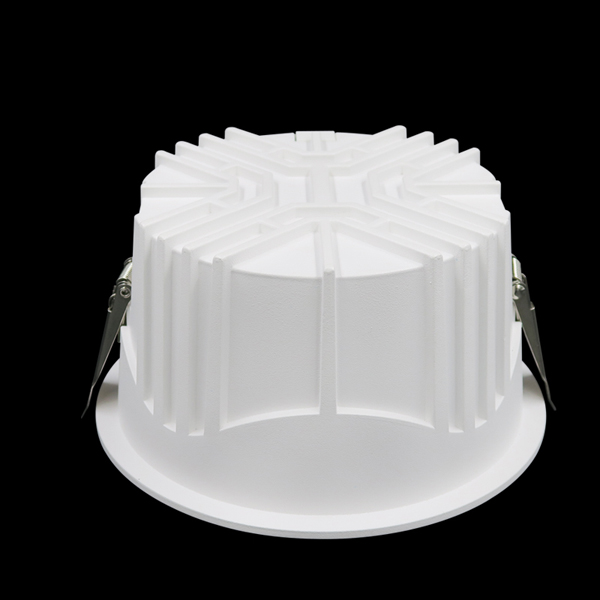

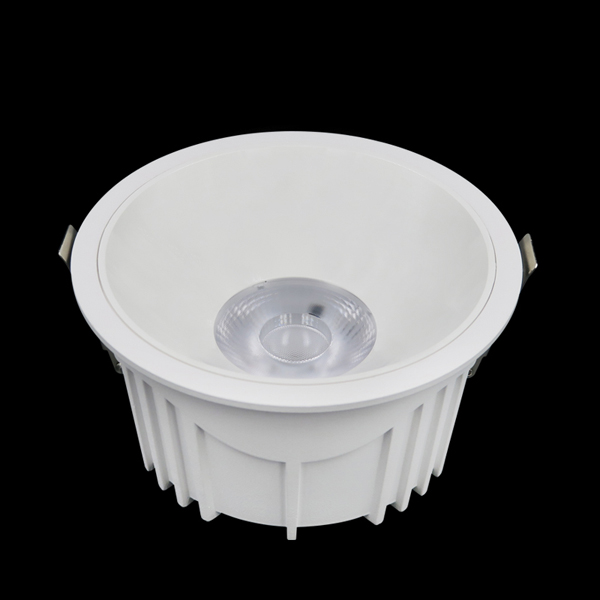

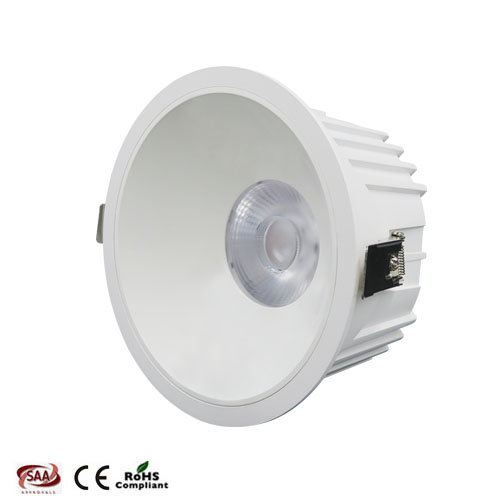

Product details show |
|
Product Installation |
I, Dig a proper hole(according to the lamp's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
| Application |
| Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
