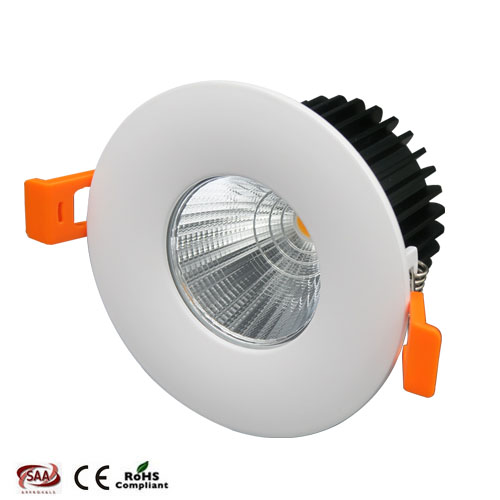

10W/12W COB LED Down Light(Type A / Type B / Type C / Type D) |
1, Excellent appearance and thanks for the Die-casting Aluminum with Unique disspation structure |
to guaratee the Light's long lifespan |
2, Adopting high quality CREE COB light source, CRI≥80Ra |
3, External and Isolated Constant Current Driver with SAA,CE,RoHS, TVB and CB |
4, Owing to the above High quality components adopted, the light's lifespan can over 50,000hrs |
5, Energy saving: 80% more than traditional lamp |
6, Very harmonious Lighting Effect |
7, No mercury, no radiation, no ultraviolet ray |
8, Operating Temperature:-10℃~+40℃ |
9, Dimmable and Non dimmable optional. TRIAC Dimmable, C-Bus/CLIPSAL/HPM compatible. It can meet different |
places needs |
|
Item No. |
MD-DLC-10W-01
MD-DLC-12W-01 |
Power |
10W
12W
|
Input Voltage |
220-240VAC/100-240VAC |
LED Source |
Original CREE COB LED |
Color Temperature |
2700K/3000K/4000K/5000K |
Lumens |
≥900lm
≥960lm |
CRI |
≥80Ra |
Size |

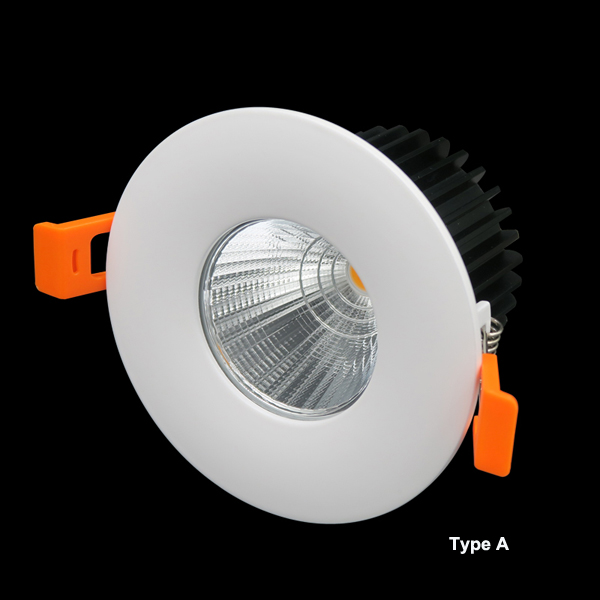

Φ100*H65mm(Type A)

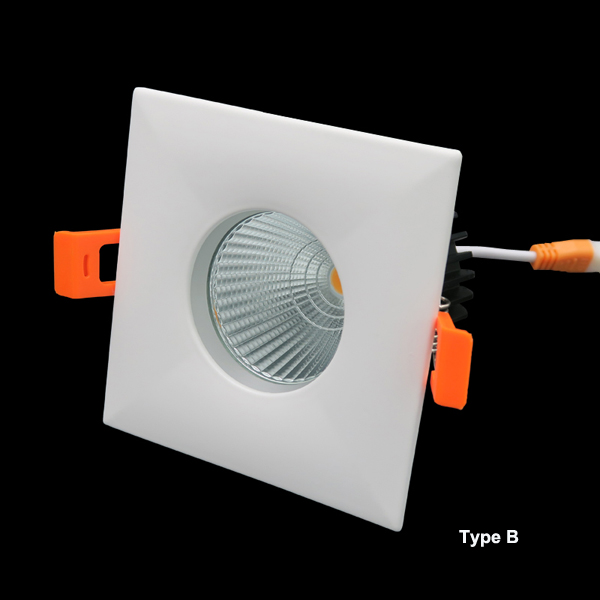

L100*W100*H75mm(Type B)

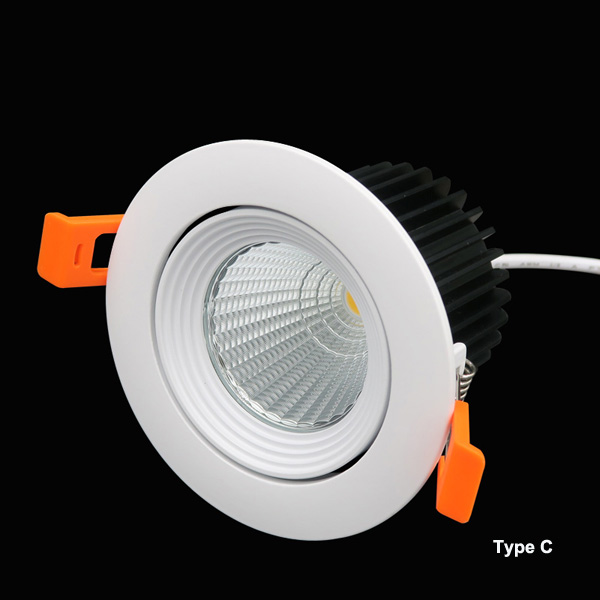

Φ100*H75mm(Type C)

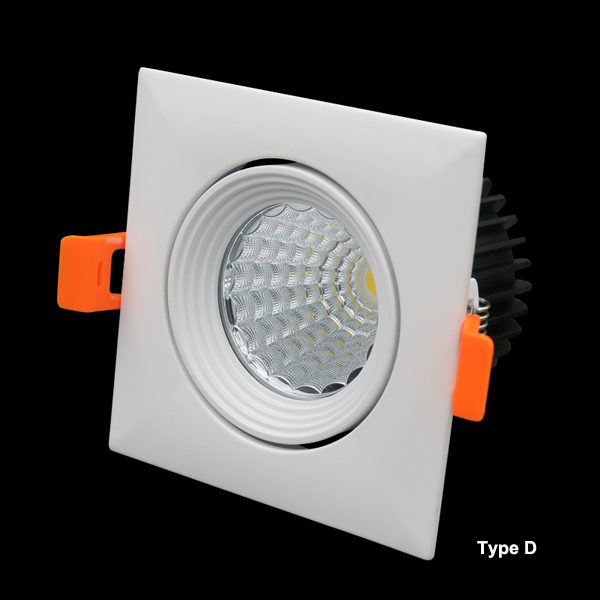

L100*W100*H75mm(Type D) |
Cut Out |
Φ90mm
|
Beam Angle |
15°/24°/38°/60° |
Frequency |
50/60Hz |
Lifespan |
≥50,000hours |
Material |
Aluminum |
Certificate |
CE,RoHS,SAA |
Warranty |
4years |
|
Product details show |
|
Product Installation |
I, Dig a proper hole(according to the lamp's Cut-out size) on the ceiling before installation OR remove the traditional downlight fitting;
II, Connect the downlight with the Driver(Connect the Male and Female Joint);
III, Pull the fixation spring up and put the downlight in the hole;
IV, Installation finished. |
|
Application |
Supermarket, Hotel, School, House, Restaurant and so on. |
|
|
|
